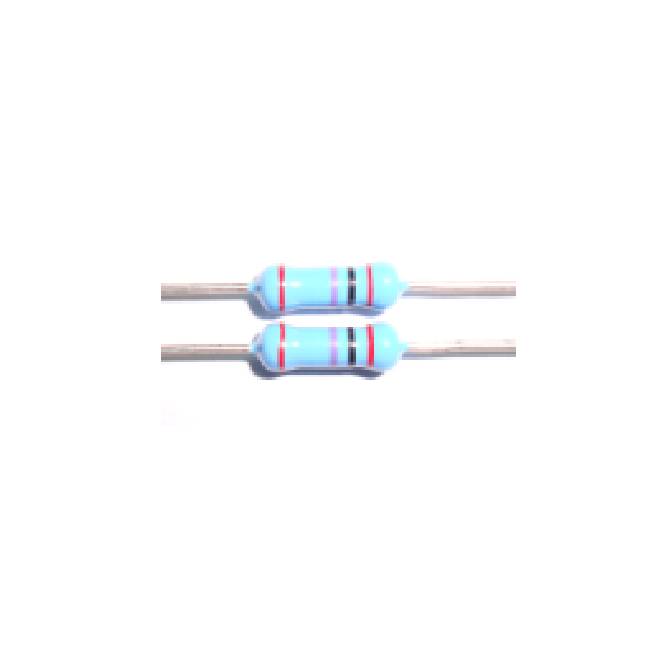

Coat‐Insulated Megohm Fixed Resistors

Model：MG-1/4W、 MG-3WS

If you have any question about product specification, Pls don’t hesitate to contact us. Thanks!

Add to inquiry

Specification

MG-1/4W	MAX. Working VOL=DC 1,600,MAX. Overload VOL=DC 2,000V
MG-3WS	MAX. Working VOL= DC 10,000V,MAX. Overload VOL=DC 14,000V

Features

• Higher working voltage
• High pulse loading capability
• Resistance to high Temp/humidity
• Highly stable performance and highly reliable
• Operating Temperature Range ‐55℃～+175℃
